Medical Equipment…
Meet The Newest Member Of The Medical Machine Family….

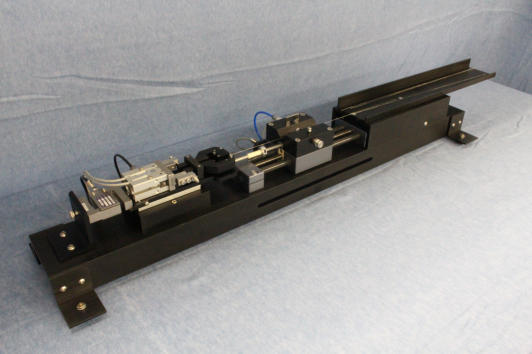

Electromechanical Wire Pull Test Machine
AUTOMATIC TENSILE TESTING
--- Specifically designed for the Wire Catheter Industry ---
“ Reduces the possibility of a product failure”
This Automatic Horizontal Wire Pull Tester is suitable for applications such as catheter wire tip testing, the motorized designed
with speed control allows testing forces from <2lbs to >1000lbs of bonding testing, until it breaks (destructive testing) or until a
pre-defined force is reached, (non-destructive testing).
When the strength of a wire is critical to your manufacturing process, this automatic tensile testing machine is a must to keep on
the bench.
FEATURES:
•
Holding Tray for the product in need of testing.
•
Easy slide process of product into holding and tip tester fixture.
•
Motorized carriage with speed control
•
Digital Display with preselected force feature that allows system to conduct a non-destructive test.
•
Easy visual display (LED Pilot Light) to show a Product Test Pass, (Green Light) or Test Fail, (Red Light).
•
Pilot Light remains ON with last result, until a new Cycle Start is initiated.
•
Two (2) options to start the test cycle, Push button on Control Box or Foot Switch under the bench.
•
Interchangeable non-metal grommets for different wire diameters.
•
Visual alarm when Carriage is not at home position on Cycle Start.
•
Visual alarm when Air Pressure is not detected on Cycle Start.
•
Automatic return of the carriage to the home position at the end of the cycle.
